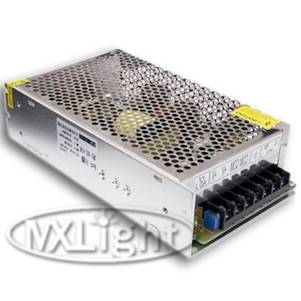

Product Code:MP-PS60W-12 Input Voltage:85-132VAC/180-264VAC 50/60Hz OUTPUT Voltage tolerance: ±12V Protections: Short circuit Test: 100% full load test Input current: 5A/12V Output watts: 60W Ripple & Noise: <120mVp-p Power Factor: >0.85 Efficiency (Typ.): >80% Leakage current:0.5mA/240V AC Working TEMP.:-10ºC~60ºC,20%~90% RH Storage TEMP.: -20ºC~85ºC,20%~90% RH Safety standards:UL 1012 TUV EN 60950 (IEC950,UL1950) Approved Vibration:10~500Hz,-2G 10min/1cycle, Period for 60min,Each axes TEMP. coefficient:Tolerance 0.03%/ºC(0~50ºC) MTBF: 20KHours MIL-HDBK-217F (25ºC) Dimension:159 x 97 x 38 mm Weight: 560g Expected Life:2-year warranty Certifications: CE and RoHS
|
