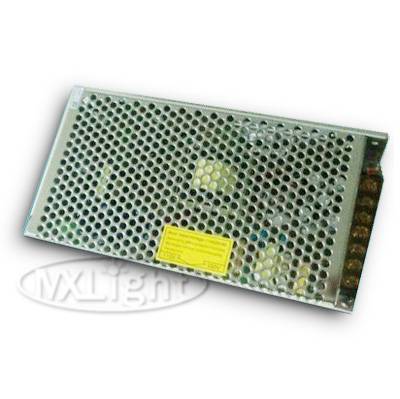

Product Code:MP-PS200W-12
Input Voltage:85-132VAC/180-264VAC 50/60Hz
OUTPUT Voltage tolerance: 3V/5V/7.5V/9V/12V/13.5V/15V/24V/27V/48V
Protections: Short circuit
Test: 100% full load test
Input current: 3.2A/115VAC,1.6A/230V
Output watts: 100W
Ripple & Noise: <120mVp-p
Power Factor: >0.9
Efficiency (Typ.): >80%
Leakage current:0.5mA/240V AC
Working TEMP.:-10ºC~60ºC,20%~90% RH
Storage TEMP.: -20ºC~85ºC,20%~90% RH
Safety standards:UL 1012 TUV EN 60950 (IEC950,UL1950) Approved
Vibration:10~500Hz,-2G 10min/1cycle, Period for 60min,Each axes
TEMP. coefficient:Tolerance 0.03%/ºC(0~50ºC)
MTBF: 20KHours MIL-HDBK-217F (25ºC)
Dimension:215*115*50 mm
Weight: 900g
Expected Life:2-year warranty
Certifications: CE and RoHS
