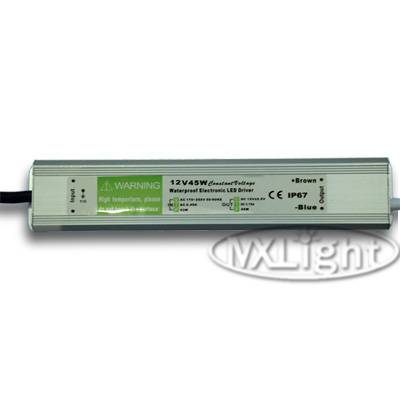

Product Code:MP-WPS45WW-12
Input Voltage:170~260VAC/ 240~360VDC
OUTPUT Voltage tolerance: 12V
Protections: Short circuit/ Overload / Over voltage / Over Temperature
Test: 100% full load test
Rated current: 3.75A
Current range:0~3.75A
Output watts: 45W
Ripple & Noise: <500mVp-p
Power Factor: >0.6
Efficiency (Typ.): >80%
Load regulation: ±2%
Leakage current:0.5mA/240V AC
Frequency range: 47~65Hz
Short circuit:short circuit protection
Over TEMP.:No temperature protection
Working TEMP.:-25ºC~50ºC,20%~90% RH
Storage TEMP.: -40ºC~80ºC,20%~90% RH
Safety standards:UL 1012 TUV EN 60950 (IEC950,UL1950) Approved
Vibration:10~500Hz,-2G 10min/1cycle, Period for 60min,Each axes
TEMP. coefficient:±0.03%/oC(0~50oC)
MTBF: 20KHours MIL-HDBK-217F (25oC)
Dimension:226*30*21mm
Weight: 260g
Working Humidity: IP66
Expected Life:2-year warranty
Certifications: CE and RoHS
