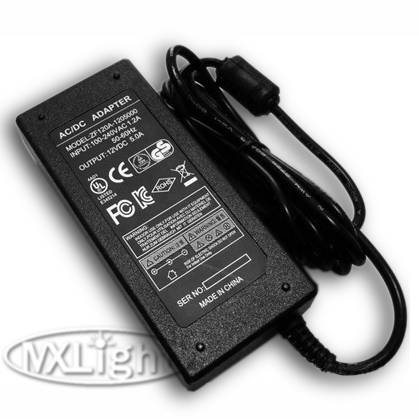

Product Code:MP-PA60WB-12 Input Voltage :100~240AC 50/60Hz Output Voltage tolerance:12V DC Ripple & Noise: <120mVp-p Power Factor: >0.6 Load regulation: ±5% Efficiency (Typ.):±85% Output watts:60W Protections: Short circuit/ Overload / Over voltage / Over Temperature Short circuit protection Over TEMP.:85ºC Working TEMP.: -20ºC~60ºC Storage TEMP.: -20ºC~85ºC Dimension: 114*50*30 mm Vibration: 10~500Hz,-2G 10min/1cycle, TEMP. coefficient:Tolerance 0.03%/ºC(0~50ºC) MTBF: 20KHours MIL-HDBK-217F (25ºC) Certifications: CE,RoHS,CUL,UL,FCC,KC
|
